THE 7 GENERATION TWINTIER

RB401T-E.

Part of the TwinTier Family

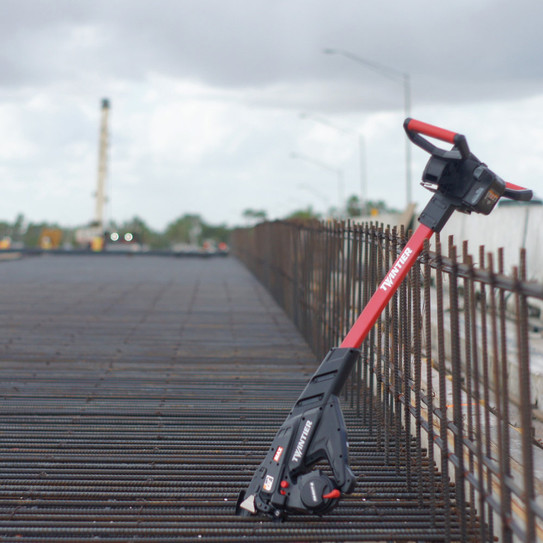

TIE STANDING UP

Tie while standing up with the RB401T-E. The RB401T-E is ergonomically designed to reduce back strain. The extended frame allows you to stand-up and tie rebar for concrete slabs. Being up to 88% less effort while having 48% less compression on lumbar joints, the RB401T-E is the perfect solution to slab work

FEATURES & BENEFITS.

200% Wider Mouth than RB441T

The long nose attachment guides the tool over the rebar while sliding towards the contact switch, resulting in you not needing to look at the mouth from the side

Easy to Clear Wire Jams

Resetting feature allowing you to clear jams by turning it off and on

Adjustable Handles

Two handed operation allows for less effort needed with the option for 2 levels of position for comfort

Replaceable Nose Attachment

Easily change the nose pieces when worn without the need for a repair

2 Nose Piece Attachments

Two nose attachments are available for different clearances between the rebar and the ground

No Trigger Pulling Needed

The tool includes an automatic mechanism, allowing it to instantly tie the rebar when pushed down

Specification.

Tool Weight

Tie Speed

4.6kg

0.7sec

Dimensions (LxWxH)

Tie Wraps

322x408x1100mm

2

Minimum Ties per Coil

Battery Charge Time

155

100% - 65mins (80% - 50mins)

Maximum Ties per Coil

260

Applicable Rebar Size

Min - D10xD10, Max - D20xD20

Ties per Charge

4000

RB401T-E/CE

Product Code

TW1061-T

Material - Annealed Steel Wire

Diameter - 1.0mm

Carton Quantity - 30

Product Code - M

TW1061-EG

Material - Electro Galvanised

Diameter - 1.0mm

Carton Quantity - 30

Product Code -M

TW1061-SS

Material - Stainless Steel Wire

Diameter - 1.0mm

Carton Quantity - 30

Product Code -M

TW1061-PC

Material - Plastic Coated Wire

Diameter - 1.1mm

Carton Quantity - 30

(Order in only)

Product Code -M
